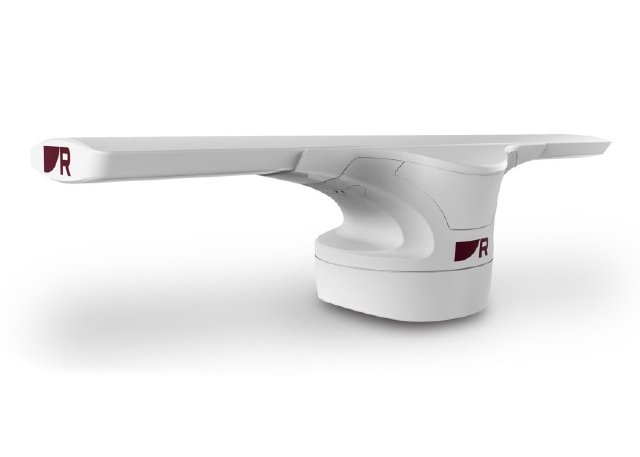

CYCLONE Open Array Radar, 121cm

55 Watt open array with CHIRP Pulse Compression technology. Available with your choice of a 3, 4, or 6-foot antenna array. 55 watt solid-state radar is equivalent to a 6 kW magnetron radar, with range performance up to 72 NM.

Specification

Key	Value
SKU	T70492
Antenna type	Slot antenna
Tx power	55W
Max. range	72nm
Beam width	1.99°
Doppler mode	Yes
Rotational speed	60RPM
WiFi	No
(M)ARPA	Yes
Weight	25kg
Compatible displays	AXIOM+ RV, AXIOM Pro S, AXIOM Pro RVX, AXIOM 2 Pro S, AXIOM 2 Pro RVM
