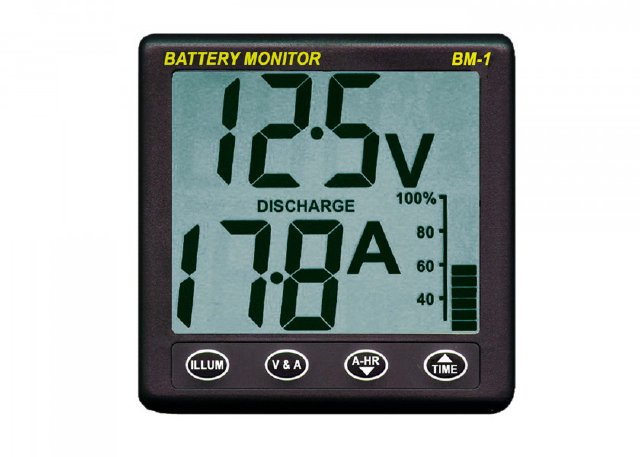

Clipper Battery Monitor BM-1
The BM-1 battery monitor is designed to monitor performance of 12 volt lead acid battery systems, including AGM and GEL types with capacities of up to 600 Amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. It also monitors the voltage of the engine start battery. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.
| Key | Value |
|---|---|
| Operating voltage | 12 V |
| Battery type | Lead-Acid, AGM, Gel |
| Battery Capacity | 600 Ah |
| Display options | Battery voltage, Battery power, Ampere hours, State of charge |
| Separate starter battery input | Yes |
| Bluetooth | No |
| NMEA2000 | No |
| Shunt included | Yes |
| with display | Yes |
| Colour display | No |
| Backlight | Red |
| Housing colour | Black |
| Round instrument | No |
| Shunt size | 100A |
