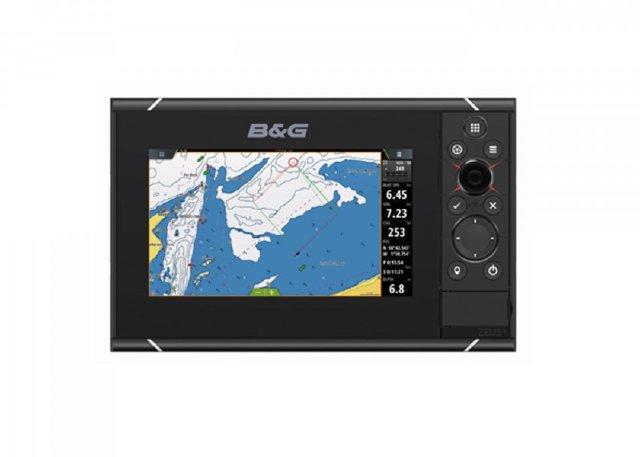

ZEUS³ 7
The Zeus³ 7 complements the larger screen sizes of the Zeus3S range with a smaller display for yachts with limited installation space. This ultra-bright, wide-angle display combines an all-weather 7-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
| Key | Value |
|---|---|
| SKU | 000-13245-001 |
| Display size | 7Inch |
| Resolution | 1024 x 600px |
| Viewing angle | 80° |
| Screen brightness | 1200Nits |
| Operating mode | Touch screen, Keys |
| NMEA2000 | Yes |
| NMEA0183 | Optional |
| WiFi | Yes |
| Bluetooth | Yes |
| Ethernet / Network | Yes |
| Radar capable | Yes |
| Tablet control | Yes |
| Sonar module | Yes |
| Sonar type | CHIRP / Fishfinder, DownScan, SideScan, ForwardScan, Numerical depth |
| Viewing angle | Downwards, Sidewards, Forwards |
| Compatible Navico transducers | P79, P319, HDI, HST-WSBL, TotalScan, ForwardScan, Active Imaging, StructureScan HD, StructureScan 3D |
| Nautical chart support | Yes |
| Sea Charts | C-MAP REVEAL, C-MAP DISCOVER, Navionics+, Navionics Platinum+, NV Charts |
| Installation width | 222mm |
| Installation height | 130mm |
| Sonar view | Fish, Bottom structure |
| IP protection class | IPX7 |
