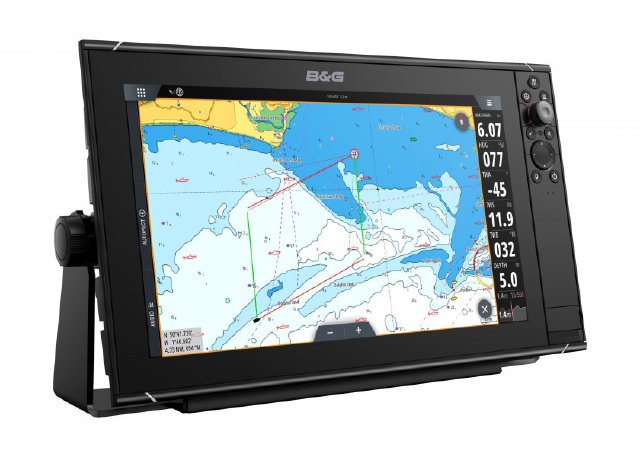

ZEUS³S - 16 / touch + buttons
The Zeus³S is a powerful chartplotter navigation system, equipped with a 16-inch touchscreen display and innovative features designed specifically for sailors.
| Key | Value |
|---|---|
| SKU | 000-15413-001 |
| Display size | 16 Inch |
| Resolution | 1920 x 1080 px |
| Viewing angle | 80° |
| Screen brightness | 1200 Nits |
| Operating mode | Touch screen, Keys |
| NMEA2000 | Yes |
| NMEA0183 | Optional |
| WiFi | Yes |
| Bluetooth | Yes |
| Ethernet / Network | Yes |
| Radar capable | Yes |
| Tablet control | Yes |
| Sonar module | Yes |
| Sonar type | CHIRP / Fishfinder, DownScan, SideScan, ForwardScan, Numerical depth |
| Viewing angle | Downwards, Sidewards, Forwards |
| Compatible Navico transducers | P79, P319, HDI, HST-WSBL, TotalScan, ForwardScan, Active Imaging, StructureScan HD, StructureScan 3D |
| Nautical chart support | Yes |
| Sea Charts | C-MAP REVEAL, C-MAP DISCOVER, Navionics+, Navionics Platinum+, NV Charts |
| Installation width | 420mm |
| Installation height | 228mm |
| Sonar view | Fish, Bottom structure |
| IP protection class | IPX7 |
