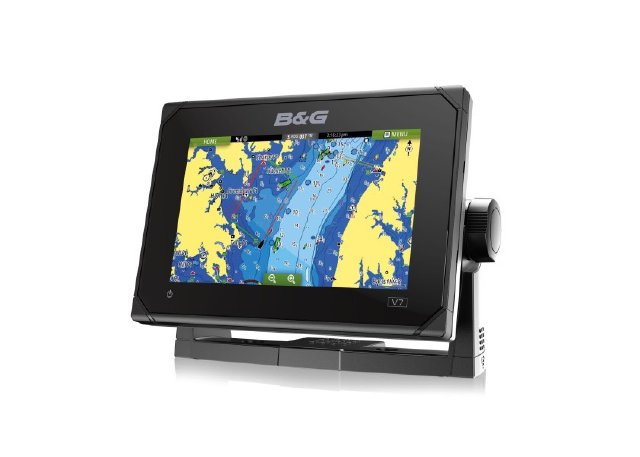

VULCAN 7
The B&G Vulcan 7 is a great value, sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G’s unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.
| Key | Value |
|---|---|
| SKU | 000-14082-001 |
| Display size | 7Inch |
| Resolution | 800 x 480px |
| Viewing angle | 80° |
| Screen brightness | 1200Nits |
| Operating mode | Touch screen |
| NMEA2000 | Yes |
| NMEA0183 | Exports NMEA0183 over WiFi |
| WiFi | Yes |
| Bluetooth | Yes |
| Ethernet / Network | No |
| Radar capable | Yes |
| Tablet control | Yes |
| Sonar module | Yes |
| Sonar type | CHIRP / Fishfinder, DownScan, SideScan, ForwardScan, Numerical depth |
| Viewing angle | Downwards, Sidewards, Forwards |
| Compatible Navico transducers | P79, P319, HDI, HST-WSBL, TotalScan, ForwardScan, Active Imaging, StructureScan HD |
| Nautical chart support | Yes |
| Sea Charts | C-MAP REVEAL, C-MAP DISCOVER, Navionics+, Navionics Platinum+, NV Charts |
| Installation width | 186mm |
| Installation height | 126mm |
| Sonar view | Fish, Bottom structure |
| IP protection class | IPX7 |
