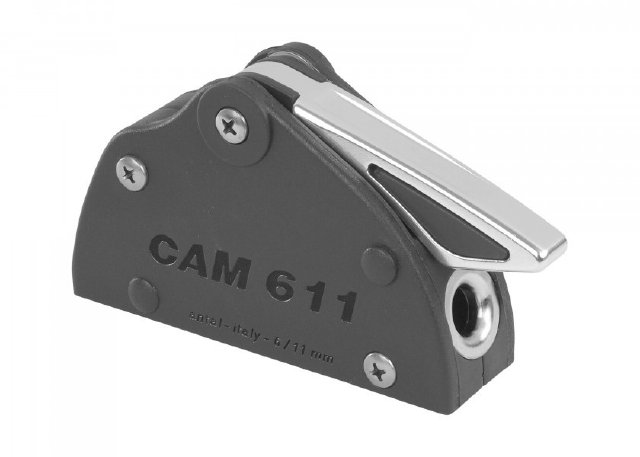

Flat cam 611 clutch, silver

Flat cam clutches are realized with the standard toothed flat cam in chromed brass. This mechanism accepts a large range of lines. This is why we realize these clutches with small dimensions, for lines from 6 to 10 mm.

Specification
Documents

Key	Value
SKU	543.110
Number of positions	1
For rope Ø	6 - 10mm
Safe working load	500kg
Length	118.5mm
Width	33mm
Height	73mm
Hole diameter	6mm
Series	CAM611
Hole Centers	79mm
Weight	0,37 kg

Exploded view
